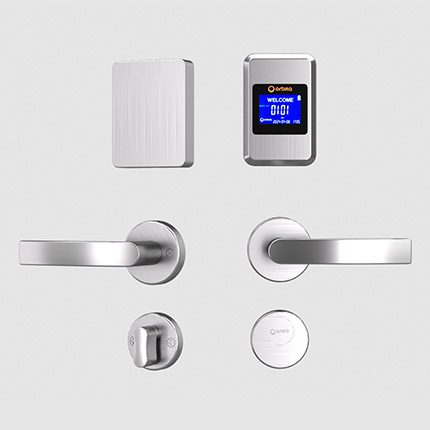

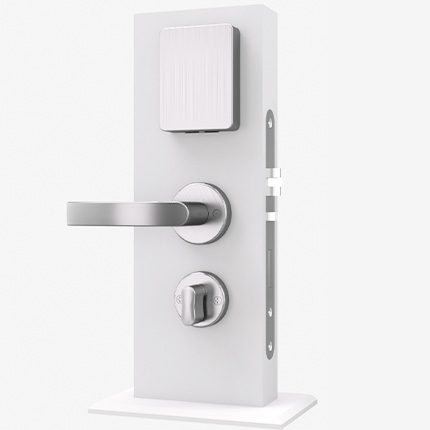

S4032G LCD hotel lock Summary
ORBITA S4032G Hotel Lock is made of grade 304 stainless steel with a PMMA card reader cover, with strong resistance to impact, corrosion and abrasion. S4032G hotel lock sensing area adopts integrated fashionable LCD display, which supports the display of "Welcome to check in, roomNo., battery power, door lock clock, week, door lock failure "and other information.S4032G Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.
S4032G Lock can be used in hotels, hospitals, schools and apartments, which comes with Orbita management system to save time and costs.
Product Details
Security Features
- Solid deadbolt
- Renovated clutch inside lock panels
- Standard 1680 events, optional 3360 events
- Optimal Bluetooth & Wireless Online solution
- Interface with Opera or FIAS format PMS
- Passed the 180-minute fire test
Technical Details
Door Thickness: 5/4" (32mm) to 2（3/4 ）" (72mm) for standard product- Operating Power: Quiescent current: <30 μA;
- dynamic current: < 200 mA
- Battery Life: last over one year
- Working Temperature: -20 ℃– 60℃;
- Relative Humidity: 20% – 90%
Components
The following ORBITA components are needed for a full functionality:
Encoder MI-ECD20
S50 Mifare Card
Wireless Portable Programmer
ORBTA Hotel System V5.6
Product size (Unit:mm)
Drill holes (Unit:mm)
E3041 Hotel lock M10 mortise Square plate (Right Open), Note: 1. The continuous thick line parts are to be drilled, pls refer to the picture dimensions. 2.Centerline of lock body is the dimension datum line. 3.Dimension unit: mm. 4. The carmine dot line part is lock body, the continuous thin line part is door part.
Product Downloads
E3041 Hotel Lock Product manual (size: 997K)
E3041 Hotel lock Hole diagram (size: 56k)
Descrip: E3041 Hotel lock M06D mortise Circle plate (Right Open)
E3041 Hotel lock Hole diagram (size: 69k)
Descrip: E3041 Hotel lock M10D mortise Circle plate (Right Open)
Product Video
S4032G LCD hotel lock Summary
ORBITA S4032G Hotel Lock is made of grade 304 stainless steel with a PMMA card reader cover, with strong resistance to impact, corrosion and abrasion.

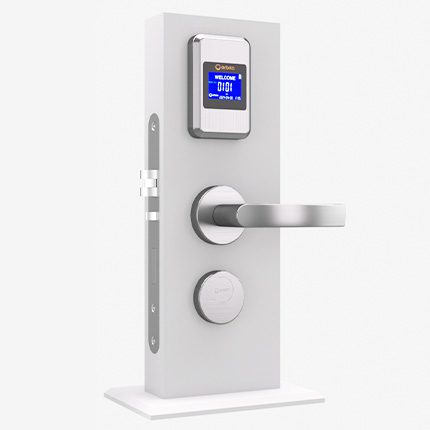

S4032G hotel lock sensing area adopts integrated fashionable LCD display, which supports the display of “Welcome to check in, roomNo., battery power, door lock clock, week, door lock failure “and other information.
S4032G Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.
S4032G Lock can be used in hotels, hospitals, schools and apartments, which comes with Orbita management system to save time and costs.
Product Details
Security Features
- Solid deadbolt
- Renovated clutch inside lock panels
- Standard 1680 events, optional 3360 events
- Optimal Bluetooth & Wireless Online solution
- Interface with Opera or FIAS format PMS
- Passed the 180-minute fire test
Technical Details
Door Thickness: 5/4″ (32mm) to 2（3/4 ）” (72mm) for standard product
- Operating Power: Quiescent current: <30 μA;
- dynamic current: < 200 mA
- Battery Life: last over one year
- Working Temperature: -20 ℃– 60℃;
- Relative Humidity: 20% – 90%
Components
The following ORBITA components are needed for a full functionality:
Encoder MI-ECD20
S50 Mifare Card
Wireless Portable Programmer
ORBTA Hotel System V5.6
Product size (Unit:mm)
Drill holes (Unit:mm)
E3041 Hotel lock M10 mortise Square plate (Right Open),
Note:
1. The continuous thick line parts are to be drilled, pls refer to the picture dimensions.
2.Centerline of lock body is the dimension datum line.
3.Dimension unit: mm.
4. The carmine dot line part is lock body, the continuous thin line part is door part.
Product Downloads
E3041 Hotel Lock Product manual (size: 997K)
E3041 Hotel lock Hole diagram (size: 56k)
Descrip: E3041 Hotel lock M06D mortise Circle plate (Right Open)
E3041 Hotel lock Hole diagram (size: 69k)
Descrip: E3041 Hotel lock M10D mortise Circle plate (Right Open)
