S3474 ORBITA Hotel RFID Lock

OXON

Material:304 Stainless Steel material
Working Voltage：DC6V or 4 AA Alkaline batteries
Low Voltage Alarm:＜4.8V
Working Environment：-20℃~60℃
Unlocking record：1680PCS
Door Thickness：35-70mm
Keycard Option：Mifare 1 card
Size：L52 * W52 * H12mm

Summary

Details

Downloads

Video

S3474 Hotel Lock Summary

ORBITA S3474 Hotel Lock is made of grade Zinc Alloy & 304 stainless steel with a PVC card reader cover, with strong resistance to impact, corrosion and abrasion.

S3474 Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.

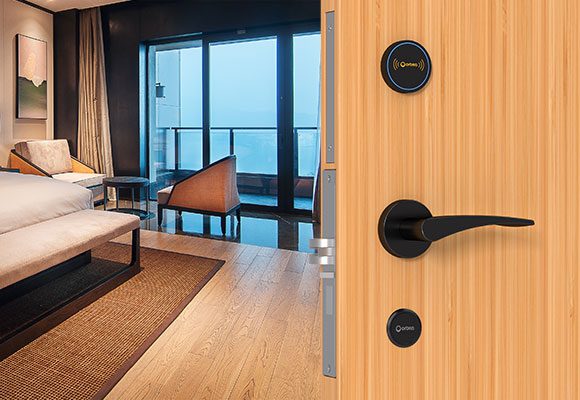

S3474 Mifare Lock can be used in hotels, hospitals, schools and apartments, which comes with Orbita management system to save time and costs..

Product Details

Security Features

Solid deadbolt
Renovated clutch inside lock panels
Standard 1680 events, optional 3360 events

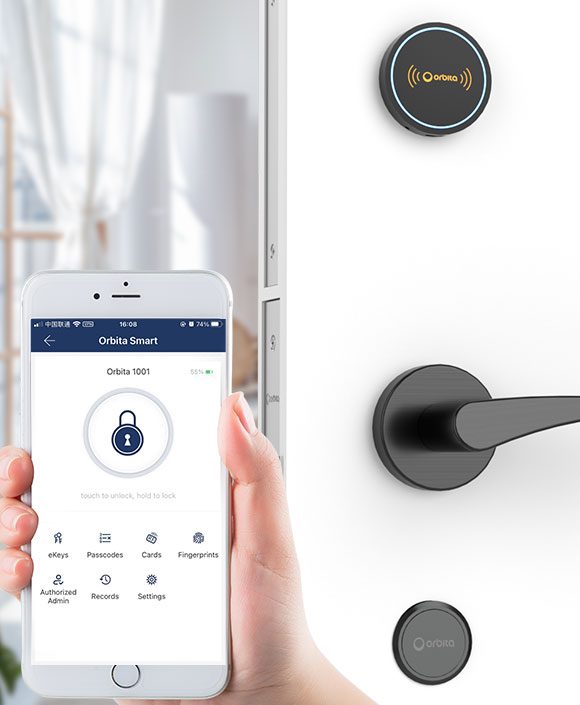

Optimal Bluetooth & Wireless Online solution
Interface with Opera or FIAS format PMS
Passed the 180-minute fire test

Technical Details

Door Thickness: 5/4" (32mm) to 2（3/4 ）" (72mm) for standard product

Operating Power: Quiescent current: <30 μA;
dynamic current: < 200 mA
Battery Life: last over one year
Working Temperature: -20 ℃– 60℃;
Relative Humidity: 20% – 90%

Components

The following ORBITA components are needed for a full functionality:

Encoder MI-ECD20

S50 Mifare Card

Wireless Portable Programmer

ORBTA Hotel System V5.6

Product size (Unit:mm)

Drill holes (Unit:mm)

E3041 Hotel lock M10 mortise Square plate (Right Open), Note: 1. The continuous thick line parts are to be drilled, pls refer to the picture dimensions. 2.Centerline of lock body is the dimension datum line. 3.Dimension unit: mm. 4. The carmine dot line part is lock body, the continuous thin line part is door part.

Product Downloads

PDF

S3474 Hotel Lock Product manual(size：2.7M)

Download

PDF

S3474 Hotel lock Hole diagram(size：80k)

Descrip:S3474 Hotel lock M01E mortise square plate (Right Open)

Download

PDF

E3041 Hotel lock Hole diagram (size: 69k)

Descrip: E3041 Hotel lock M10D mortise Circle plate (Right Open)

Download
